Architectural · A-SWKBC

Non Rated Partial Height Furring Wall Details

Materials

Concrete Steel Timber / Wood Stone Metal (misc.)Gypsum / Drywall

Elements

Walls Ceilings Floors / Slabs Bracing Insulation Anchors / Embeds Connections / Plates

Connections

Shear Stud / Composite Deck Attachment Embed Plate

About this detail

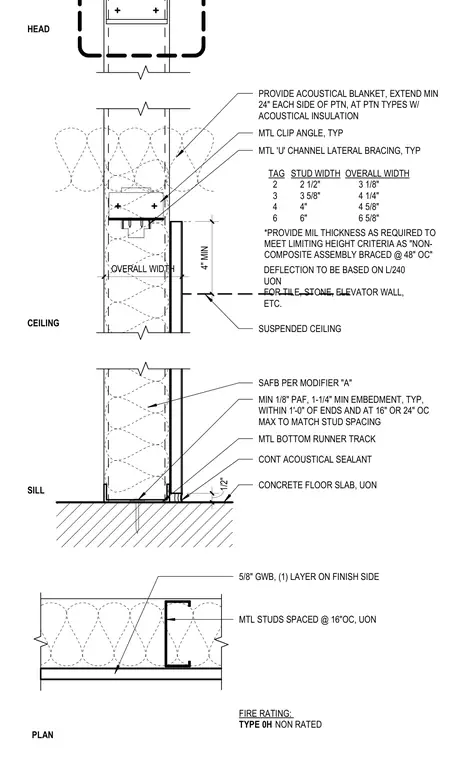

This partial height furring wall assembly features metal studs spaced at sixteen inches on center with one layer of five-eighths-inch gypsum wallboard on the finish side. The sill detail anchors the metal bottom runner track to the concrete floor slab using minimum one-eighth-inch powder-actuated fasteners with a one-and-one-quarter-inch minimum embedment, supplemented by continuous acoustical sealant. The ceiling and head conditions incorporate metal clip angles, metal U-channel lateral bracing at forty-eight inches on center, and a four-inch minimum deflection gap with safb insulation. An acoustical blanket extends a minimum of twenty-four inches on each side of the partition where specified, and a sizing table provides stud and overall widths for tags two, three, four, and six.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
