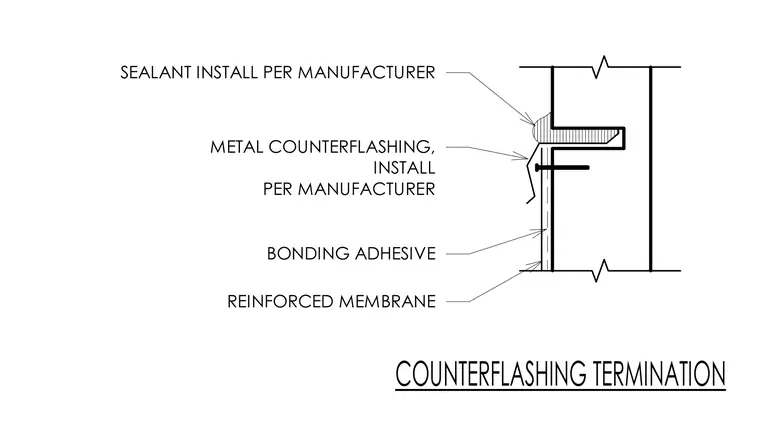

Metal counterflashing is secured to the vertical wall and sealed at the top edge with manufacturer-approved sealant installed per manufacturer recommendations. A reinforced membrane is adhered to the substrate using bonding adhesive beneath the counterflashing.
SEALANT INSTALL PER MANUFACTURER METAL COUNTERFLASHING, INSTALL PER MANUFACTURER BONDING ADHESIVE REINFORCED MEMBRANE COUNTERFLASHING TERMINATION
