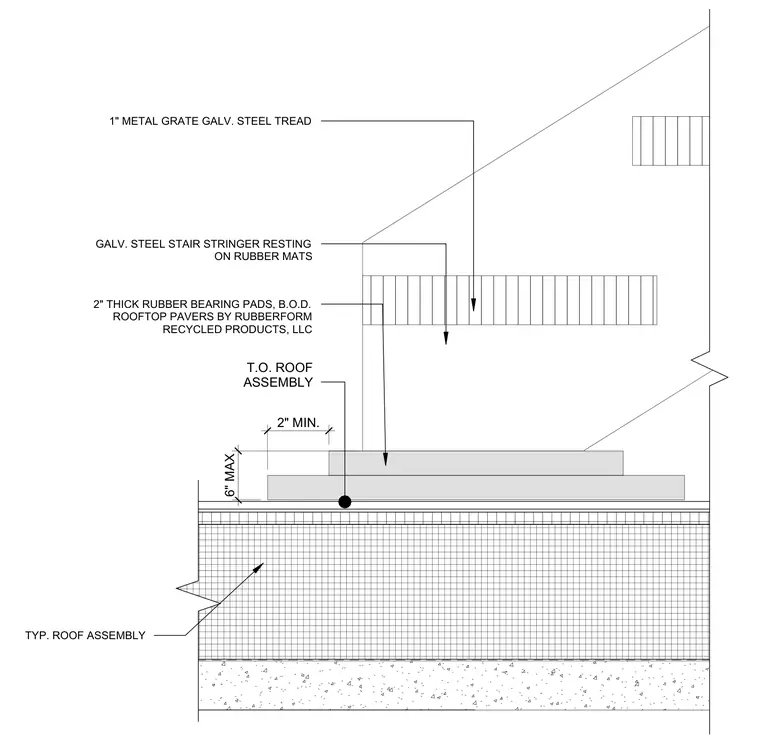

A galvanized steel stair stringer rests on two-inch thick rubber bearing pads and rubber mats above a typical roof assembly. One-inch metal grate galvanized steel treads span the stringers. Rooftop pavers by Rubberform Recycled Products, LLC sit adjacent to the bearing support over the top of the roof assembly. Clearances show a two-inch minimum and six-inch maximum dimension for the base condition.
1" METAL GRATE GALV. STEEL TREAD GALV. STEEL STAIR STRINGER RESTING ON RUBBER MATS 2" THICK RUBBER BEARING PADS, B.O.D. ROOFTOP PAVERS BY RUBBERFORM RECYCLED PRODUCTS, LLC T.O. ROOF ASSEMBLY TYP. ROOF ASSEMBLY 6" MAX 2" MIN.
