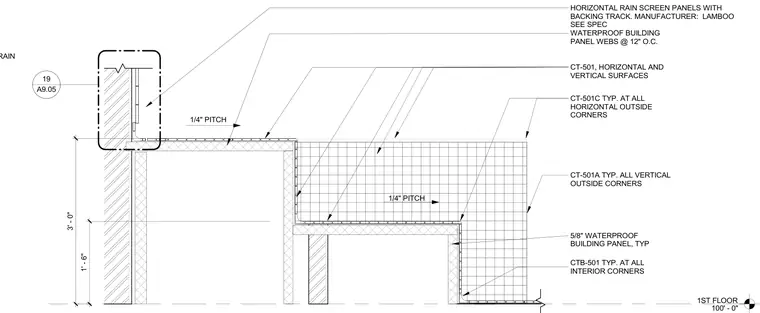

This pool seating bench section details a tiered concrete or framed structure clad in five-eighths inch waterproof building panels with webs spaced twelve inches on center. Horizontal and vertical surfaces incorporate a quarter-inch pitch for drainage. Special corner treatments include exterior horizontal corner trim pieces, exterior vertical corner trim pieces, and interior corner flashing. Lamboo horizontal rain screen panels with backing tracks finish the upper wall assembly per specification A9.05.
CS-2 CLIMATE-SHIELD RAIN 1ST FLOOR 100' - 0" 1/4" PITCH CT-501, HORIZONTAL AND VERTICAL SURFACES WATERPROOF BUILDING PANEL WEBS @ 12" O.C. CTB-501 TYP. AT ALL INTERIOR CORNERS 5/8" WATERPROOF BUILDING PANEL, TYP 1/4" PITCH CT-501C TYP. AT ALL HORIZONTAL OUTSIDE CORNERS 1' - 6" CT-501A TYP. ALL VERTICAL OUTSIDE CORNERS 3' - 0" HORIZONTAL RAIN SCREEN PANELS WITH BACKING TRACK. MANUFACTURER: LAMBOO SEE SPEC A9.05 19
