Vitrified polymer composite replaceable cast-in-place detectable and tactile warning surface tile is installed over a fresh concrete slab per manufacturer specifications. The tile features truncated domes spaced at 2.35 inches typically in both directions, with dome dimensions of 0.9 inches base diameter, 0.45 inches top diameter, and 0.2 inches height. The color matches Federal Standard 595C yellow, number FS 33538.

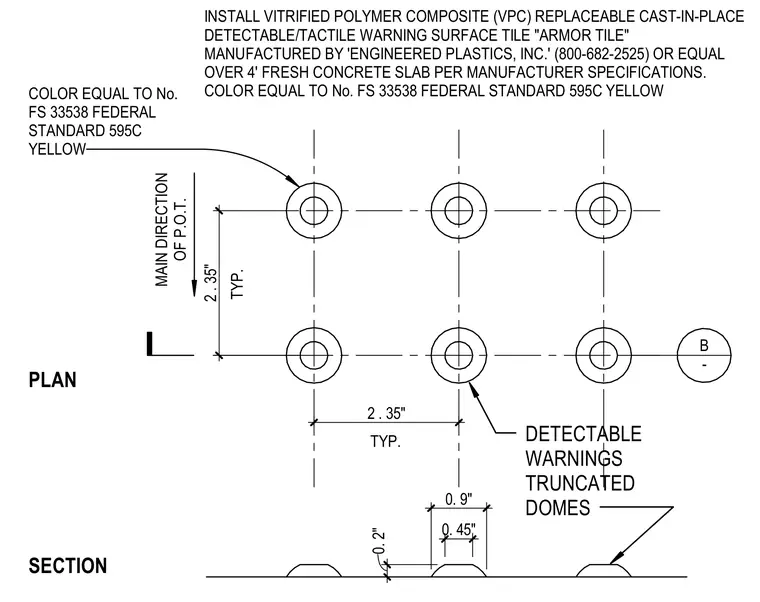

MAIN DIRECTION OF P.O.T. TYP. TYP. 2 . 35" 2 . 35" B - DETECTABLE WARNINGS TRUNCATED DOMES 0. 9" 0. 45" 0. 2" SECTION PLAN COLOR EQUAL TO No. FS 33538 FEDERAL STANDARD 595C YELLOW INSTALL VITRIFIED POLYMER COMPOSITE (VPC) REPLACEABLE CAST-IN-PLACE DETECTABLE/TACTILE WARNING SURFACE TILE "ARMOR TILE" MANUFACTURED BY 'ENGINEERED PLASTICS, INC.' (800-682-2525) OR EQUAL OVER 4' FRESH CONCRETE SLAB PER MANUFACTURER SPECIFICATIONS. COLOR EQUAL TO No. FS 33538 FEDERAL STANDARD 595C YELLOW
