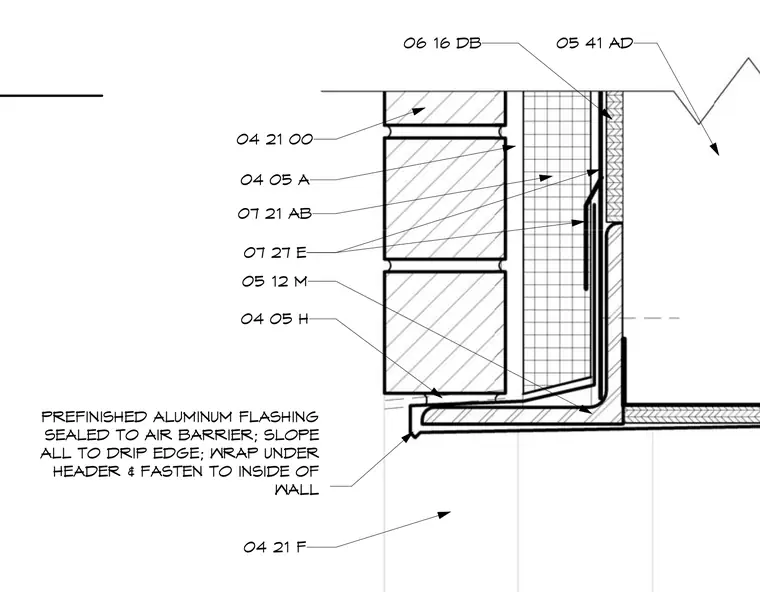

Prefinished aluminum flashing is sealed directly to the air barrier, sloped toward the exterior drip edge, and wrapped under the header to fasten securely to the inside of the wall. Masonry units sit below and adjacent to the flashing assembly over the wall framing and insulation layers.
04 21 F 04 21 00 04 05 A 07 21 AB 07 27 E 07 27 E 06 16 DB 05 41 AD 04 05 H 05 12 M PREFINISHED ALUMINUM FLASHING SEALED TO AIR BARRIER; SLOPE ALL TO DRIP EDGE; WRAP UNDER HEADER & FASTEN TO INSIDE OF WALL
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
