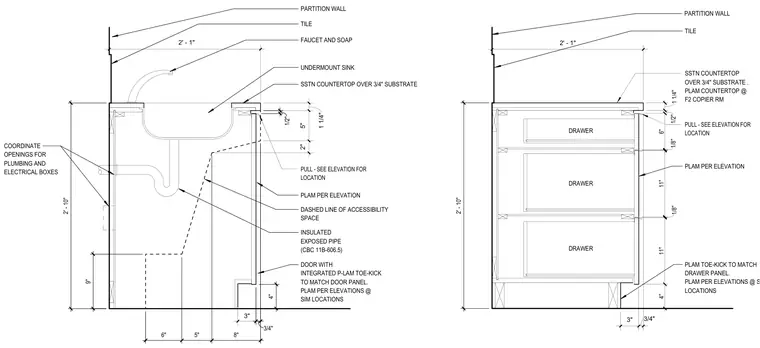

This accessible casework detail shows a stainless steel or solid surface countertop over a three-quarter-inch substrate, supported by a plastic laminate cabinet structure. The sink assembly includes an undermount sink with a faucet and soap dispenser, along with insulated exposed piping below to comply with CBC 11B-606.5 accessibility standards. The adjacent drawer unit features three drawers with plastic laminate fronts and an integrated toe-kick matching the door panels. Dashed lines indicate the required knee clearance and accessibility space beneath the counter. Wall conditions include a partition wall with tile finishes and coordinated rough-ins for plumbing and electrical boxes.
2' - 1" 3" 2" 5" 1 1/4" PARTITION WALL UNDERMOUNT SINK SSTN COUNTERTOP OVER 3/4" SUBSTRATE DOOR WITH INTEGRATED P-LAM TOE-KICK TO MATCH DOOR PANEL. PLAM PER ELEVATIONS @ SIM LOCATIONS INSULATED EXPOSED PIPE (CBC 11B-606.5) COORDINATE OPENINGS FOR PLUMBING AND ELECTRICAL BOXES 1 / 2 " TILE FAUCET AND SOAP 6 " 5 " 8 " 3 / 4 " 4 " 9 " 2 ' - 1 0 " PLAM PER ELEVATION P U L L - S E E E L E V A T I O N F O R L O C A T I O N DASHED LINE OF ACCESSIBILITY SPACE 2' - 1" 3" 3/4" SSTN COUNTERTOP OVER 3/4" SUBSTRATE . PLAM COUNTERTOP @ F2 COPIER RM DRAWER DRAWER DRAWER 2 ' - 1 0 " TILE PARTITION WALL P U L L - S E E E L E V A T I O N F O R L O C A T I O N 1 1 / 4 " 1 / 2 " 6 " 1 / 8 " 1 1 " 1 / 8 " 1 1 " 4 " PLAM PER ELEVATION PLAM TOE-KICK TO MATCH DRAWER PANEL. PLAM PER ELEVATIONS @ SIM LOCATIONS
