Electrical Outlet Strain Relief

Materials

Elements

About this detail

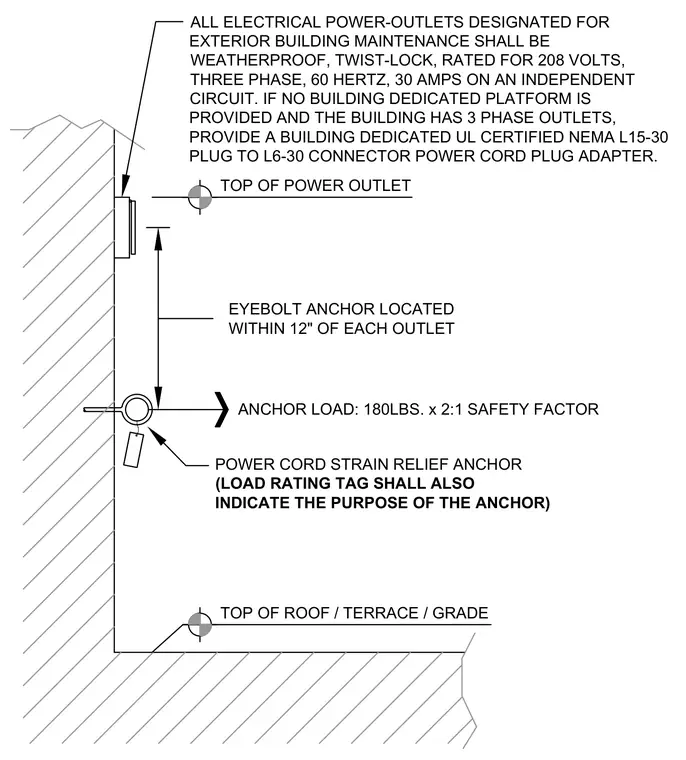

An exterior wall assembly integrates a weatherproof twist-lock power outlet rated for two hundred eight volts, three phase, sixty hertz, thirty amps on an independent circuit. A power cord strain relief eyebolt anchor is positioned within twelve inches of the outlet with a design load of one hundred eighty pounds at a two-to-one safety factor. A load rating tag is attached to indicate the specific purpose of the anchor. If no building dedicated platform exists, a NEMA L15-30 plug to L6-30 connector adapter is provided.
