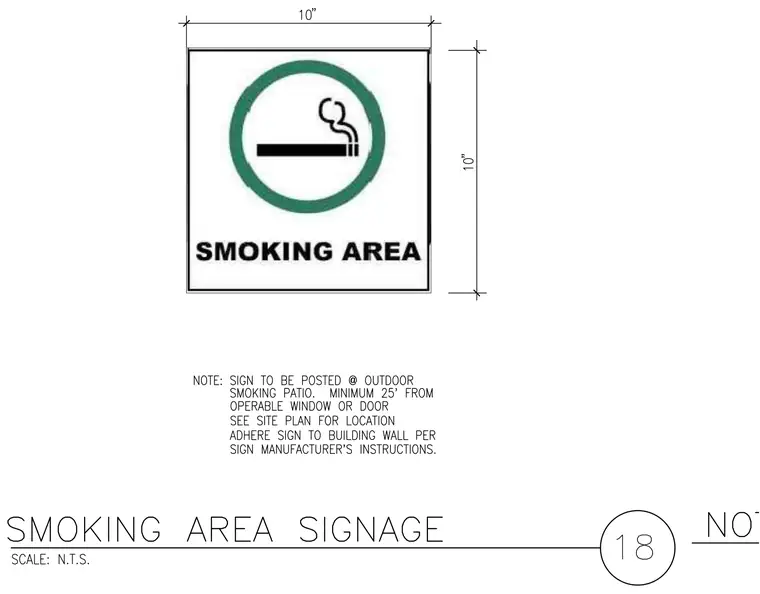

A square smoking area sign measuring ten inches by ten inches features a graphic symbol and text. The sign is designated for placement at outdoor smoking patios at a minimum distance of twenty-five feet from operable windows or doors, with exact positioning determined by the site plan. Installation requires adhering the sign to the building wall according to the sign manufacturer instructions.
