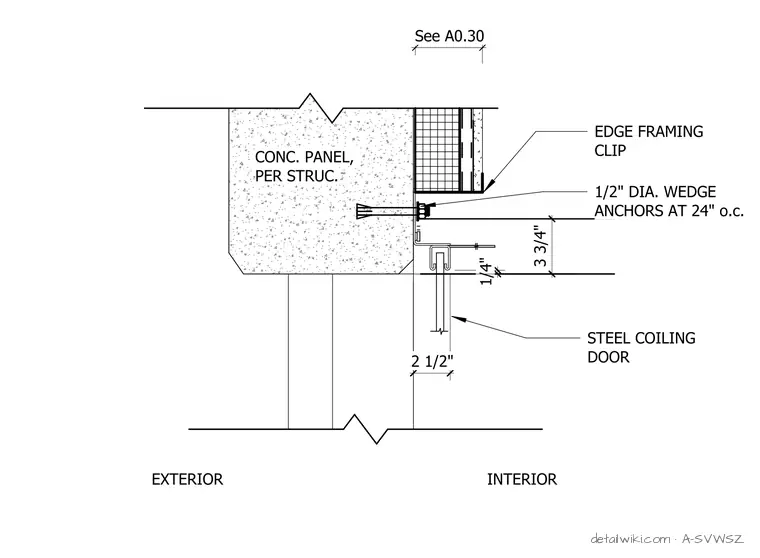

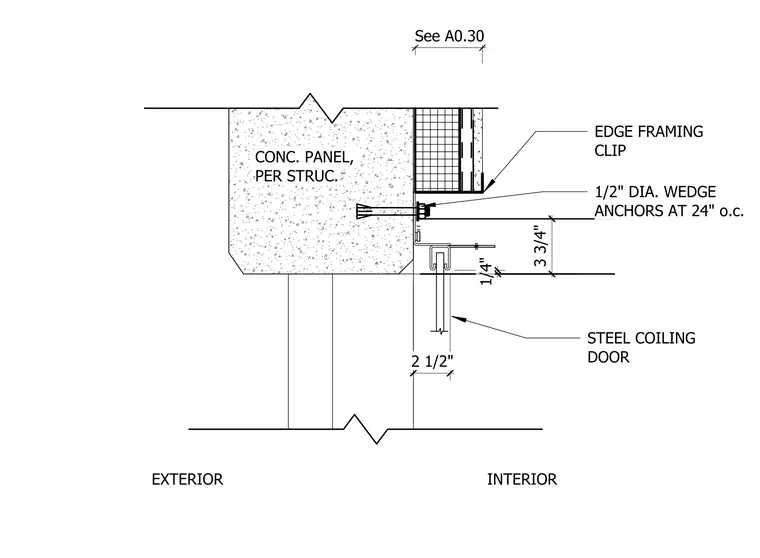

This assembly details the jamb condition for a steel coiling door mounted to a concrete panel wall. An edge framing clip is secured to the concrete panel using one-half inch diameter wedge anchors spaced at twenty-four inches on center. The steel coiling door guide is mounted to the framing clip, providing a two and one-half inch clearance for the door assembly. The total depth of the framing assembly from the face of the concrete is three and three-quarters inches, with a one-quarter inch offset at the door guide interface.
Text on the drawing
1/2" DIA. WEDGE ANCHORS AT 24" o.c. STEEL COILING DOOR 2 1/2" 1/4" 3 3/4" See A0.30 EDGE FRAMING CLIP CONC. PANEL, PER STRUC. EXTERIOR INTERIOR
