Architectural · A-SVSBM

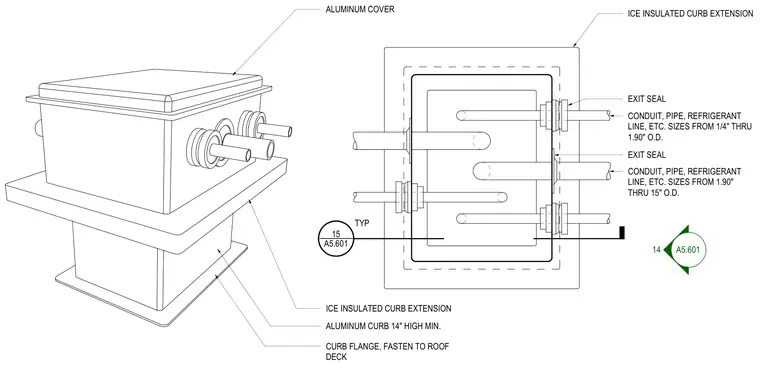

Roof Cable Penetration Housing Axonometric and Plan Detail

Materials

Elements

Roofs Decks Site / Paving Roof / Floor Openings

About this detail

An ice-insulated aluminum curb extension mounts to the roof deck via a curb flange and supports an aluminum cover. Conduits, pipes, and refrigerant lines ranging from one-quarter inch to fifteen inches in outside diameter pass through the assembly using exit seals.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
