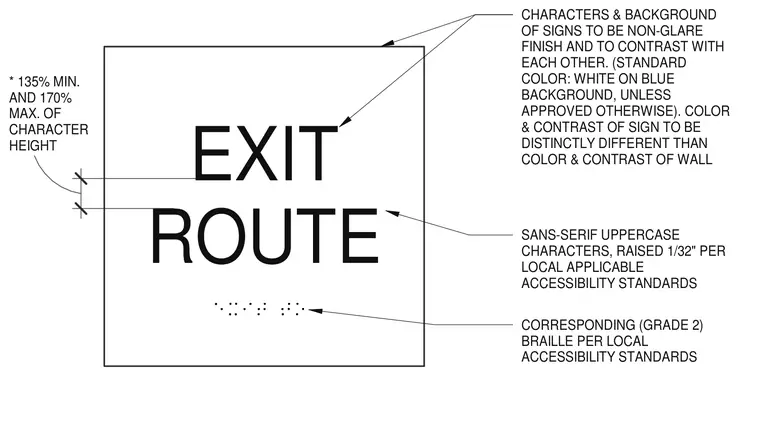

The sign features sans-serif uppercase characters raised one-thirty-second of an inch with corresponding Grade 2 Braille per local accessibility standards. Character height ranges from one hundred thirty-five percent minimum to one hundred seventy percent maximum of the corresponding standard. Characters and background maintain a non-glare finish and contrast with each other using a white-on-blue standard color scheme. The overall color and contrast of the sign must be distinctly different from the adjacent wall.
EXIT ROUTE * 135% MIN. AND 170% MAX. OF CHARACTER HEIGHT CORRESPONDING (GRADE 2) BRAILLE PER LOCAL ACCESSIBILITY STANDARDS SANS-SERIF UPPERCASE CHARACTERS, RAISED 1/32" PER LOCAL APPLICABLE ACCESSIBILITY STANDARDS CHARACTERS & BACKGROUND OF SIGNS TO BE NON-GLARE FINISH AND TO CONTRAST WITH EACH OTHER. (STANDARD COLOR: WHITE ON BLUE BACKGROUND, UNLESS APPROVED OTHERWISE). COLOR & CONTRAST OF SIGN TO BE DISTINCTLY DIFFERENT THAN COLOR & CONTRAST OF WALL
