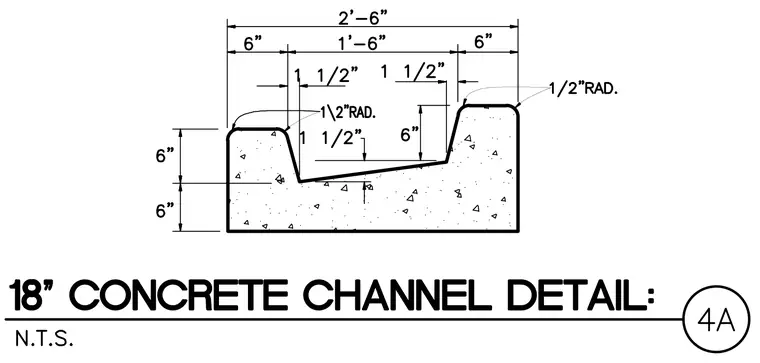

An 18-inch wide concrete channel features an overall height of 12 inches with a sloped bottom profile draining toward the center. The exterior base measures 2 feet 6 inches wide, with 6-inch thick side walls stepping down. Internal radii of 1-1/2 inches and external radii of 1/2 inch soften the transition edges.
