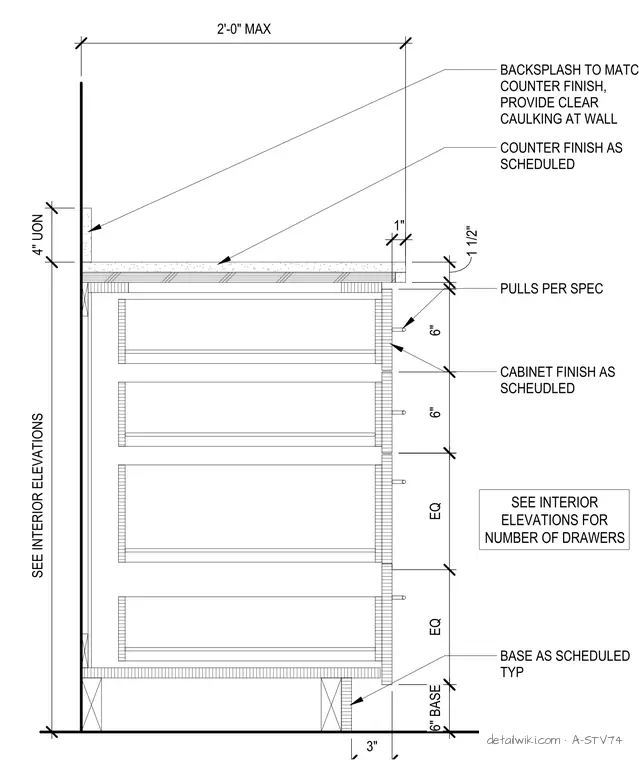

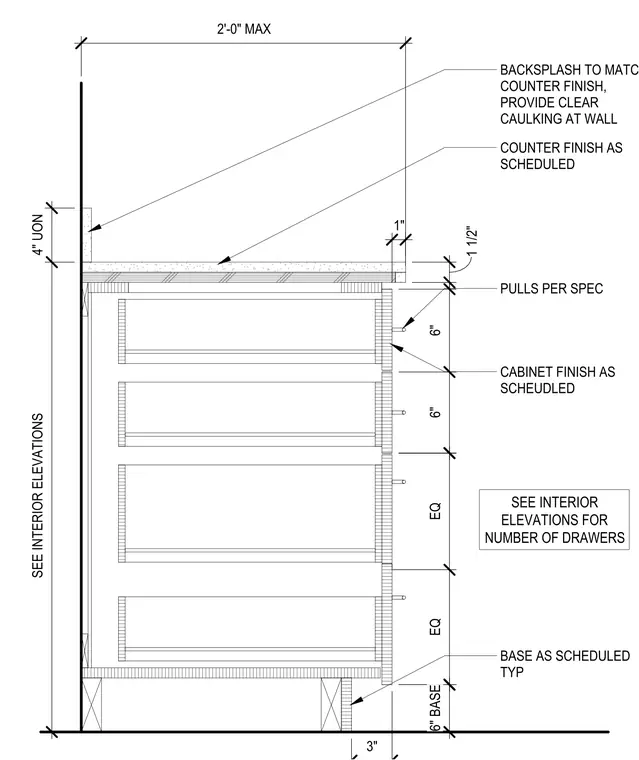

This base cabinet assembly features a countertop with a four-inch backsplash that requires clear caulking at the wall interface. The countertop finish is provided as scheduled, with a one-inch overhang beyond the cabinet face. The cabinet unit includes multiple drawers with pulls installed per specifications. The base is finished as scheduled with a six-inch height, and the cabinet is set three inches from the wall. The number of drawers is determined by the interior elevations.
