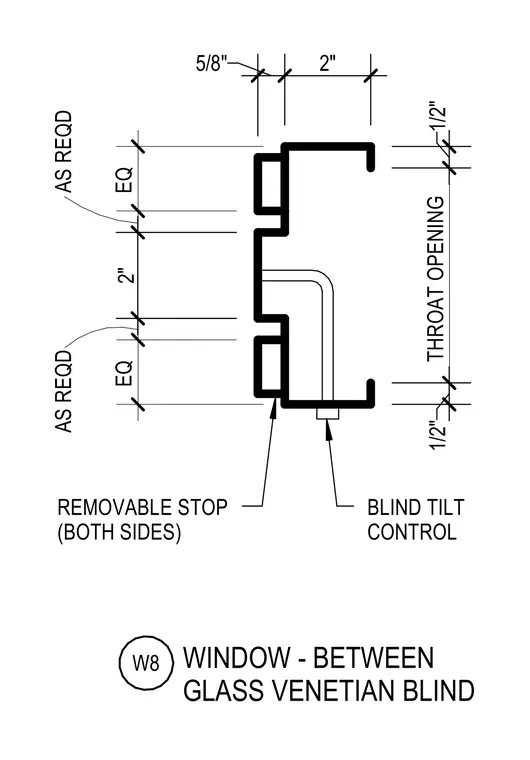

A specialized frame assembly incorporates a between-glass venetian blind with an internal tilt control mechanism. The profile features removable stops on both sides and a throat opening dimensioned with equal spacing as required. Dimensions include a two-inch main depth and five-eighths-inch offset adjustments.
5/8" 2" 2" 1/2" 1/2" REMOVABLE STOP (BOTH SIDES) BLIND TILT CONTROL THROAT OPENING WINDOW - BETWEEN GLASS VENETIAN BLIND W8 AS REQD AS REQD EQ EQ
