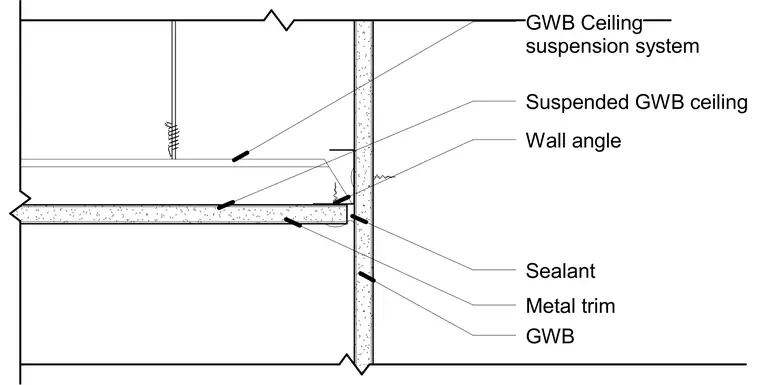

A suspended gypsum wallboard ceiling terminates at a partition wall using a perimeter wall angle support. The gypsum wallboard board is secured to the ceiling suspension system and finishes against the wall with metal trim. A bead of sealant is applied at the joint between the ceiling gypsum wallboard and the vertical wall gypsum wallboard surface.
GWB Ceiling suspension system Suspended GWB ceiling Wall angle Sealant GWB Metal trim
