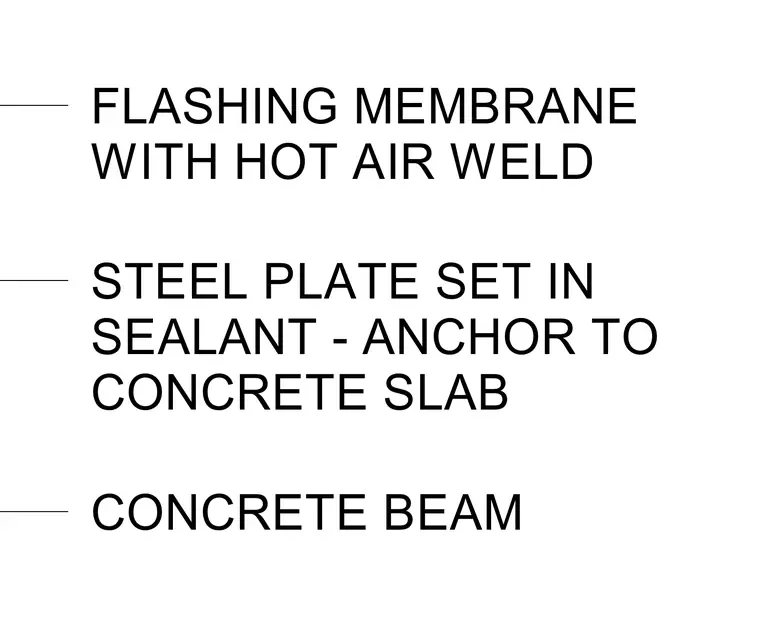

A steel plate is set in sealant and anchored to the concrete slab above a concrete beam. A waterproofing flashing membrane is sealed with a hot air weld above the steel plate assembly.
STEEL PLATE SET IN SEALANT - ANCHOR TO CONCRETE SLAB FLASHING MEMBRANE WITH HOT AIR WELD CONCRETE BEAM
