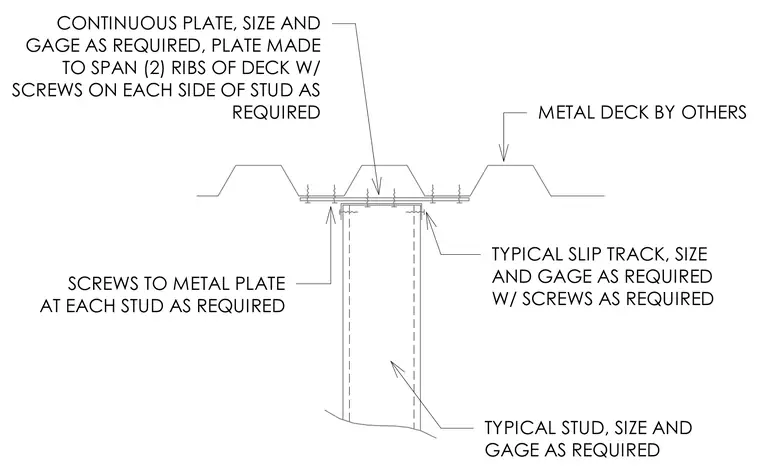

A typical cold-formed steel stud of size and gauge as required terminates at a slip track secured with screws. A continuous plate, sized and gauged as required, spans two ribs of the metal deck above. Screws fasten the metal plate to each stud and secure the continuous plate to the metal deck.
METAL DECK BY OTHERS TYPICAL SLIP TRACK, SIZE AND GAGE AS REQUIRED W/ SCREWS AS REQUIRED TYPICAL STUD, SIZE AND GAGE AS REQUIRED SCREWS TO METAL PLATE AT EACH STUD AS REQUIRED CONTINUOUS PLATE, SIZE AND GAGE AS REQUIRED, PLATE MADE TO SPAN (2) RIBS OF DECK W/ SCREWS ON EACH SIDE OF STUD AS REQUIRED
