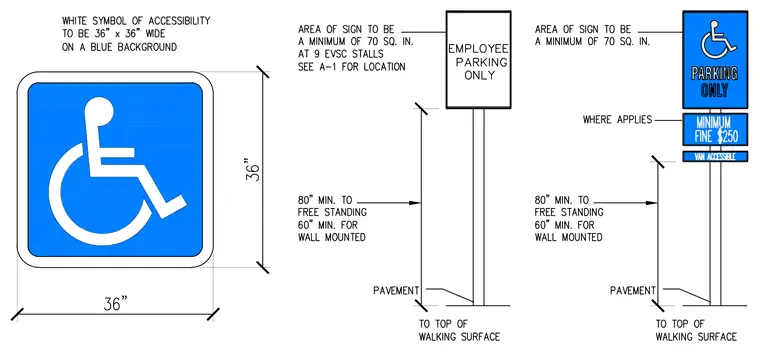

An accessible parking sign requires a white international symbol of accessibility centered on a blue background, measuring 36 inches by 36 inches overall. The sign assembly maintains a minimum vertical clearance of 80 inches from the top of the walking surface to the bottom of the sign for free-standing installations, or 60 inches minimum when wall-mounted. Signage areas for employee parking-only designations require a minimum of 70 square inches at specified electric vehicle charging stalls. Additional sub-panels indicate fine amounts and van accessible designations where applicable.
