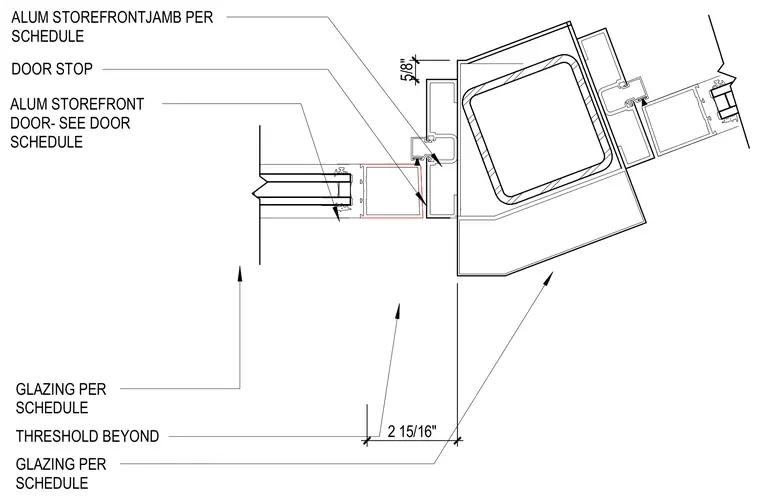

An aluminum storefront door frame meets an aluminum storefront jamb sized per schedule with an integrated door stop. The assembly connects to an adjacent aluminum storefront door and sidelight glazing as specified in the schedule. A threshold extends beyond the frame profile, with dimensional clearances of five-eighths inch and two and fifteen-sixteenths inches indicated.
GLAZING PER SCHEDULE ALUM STOREFRONTJAMB PER SCHEDULE ALUM STOREFRONT DOOR- SEE DOOR SCHEDULE DOOR STOP THRESHOLD BEYOND GLAZING PER SCHEDULE 2 15/16" 5/8"
