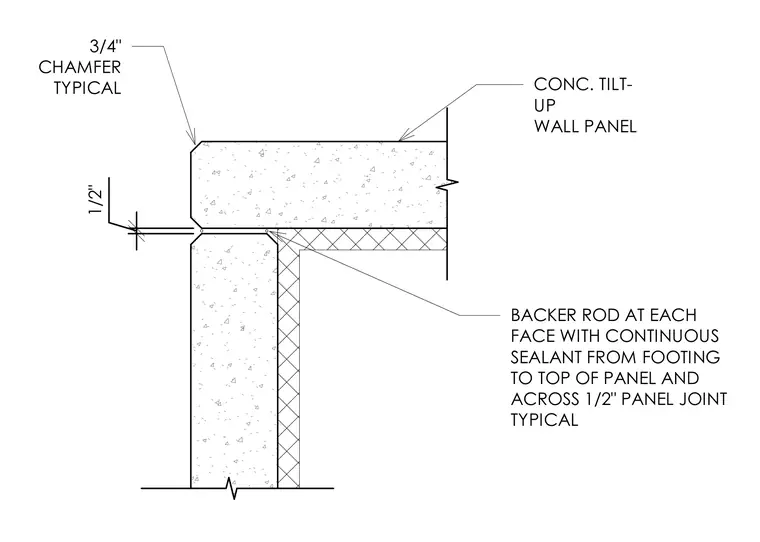

Two concrete tilt-up wall panels meet at an exterior corner with a one-half-inch vertical joint between them. A backer rod and continuous sealant run at each face along the joint from the footing to the top of the panel and across the panel joint. The exterior concrete edges feature a typical three-quarter-inch chamfer.
CONC. TILT- UP WALL PANEL BACKER ROD AT EACH FACE WITH CONTINUOUS SEALANT FROM FOOTING TO TOP OF PANEL AND ACROSS 1/2" PANEL JOINT TYPICAL 1/2" 3/4" CHAMFER TYPICAL
