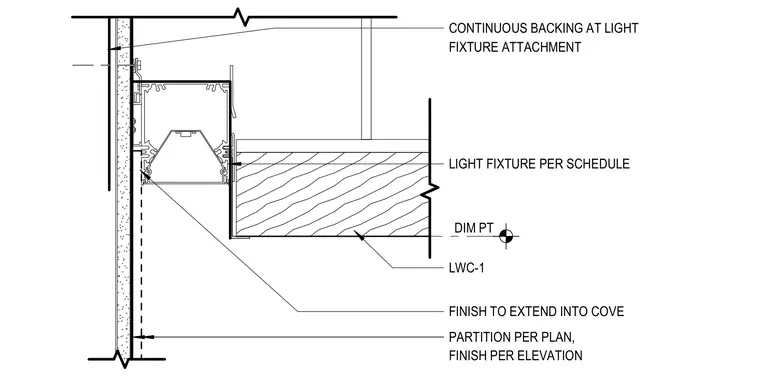

A linear light fixture is housed within a recessed pocket formed at the intersection of a partition and a wood ceiling assembly. Continuous backing is provided behind the partition finish for light fixture attachment. Wall finishes extend continuously into the light cove recess. The wood ceiling panel system terminates at the cove assembly per the architectural floor plan and finish schedule.
LWC-1 PARTITION PER PLAN, FINISH PER ELEVATION CONTINUOUS BACKING AT LIGHT FIXTURE ATTACHMENT FINISH TO EXTEND INTO COVE LIGHT FIXTURE PER SCHEDULE DIM PT
