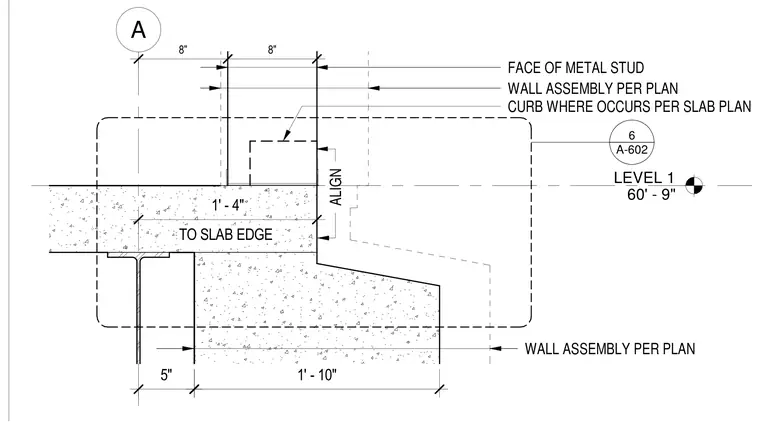

This wall and floor junction details the connection between the Level 1 concrete slab edge and the foundation wall assembly. The detail indicates a structural support condition featuring a steel beam bearing beneath the slab and a metal stud wall assembly aligned per plan. A concrete curb is provided where indicated on the slab plan. Dimensions specify setbacks and alignment tolerances for the framing and concrete elements.
A LEVEL 1 60' - 9" 8" 8" A-602 6 FACE OF METAL STUD 1' - 10" TO SLAB EDGE 1' - 4" 5" ALIGN WALL ASSEMBLY PER PLAN WALL ASSEMBLY PER PLAN CURB WHERE OCCURS PER SLAB PLAN
