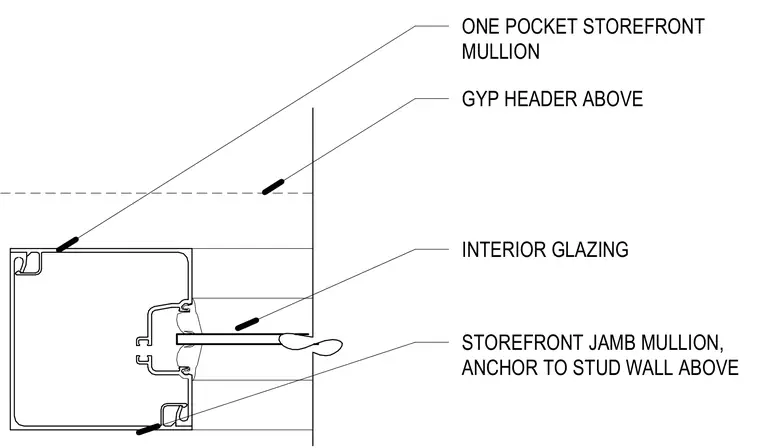

A one-pocket storefront mullion acts as a free end jamb mullion anchoring to a stud wall with a gypsum drywall header above. Interior glazing is captured within the framing pocket. The storefront framing attaches directly to the adjacent wall construction.
ONE POCKET STOREFRONT MULLION INTERIOR GLAZING STOREFRONT JAMB MULLION, ANCHOR TO STUD WALL ABOVE GYP HEADER ABOVE
