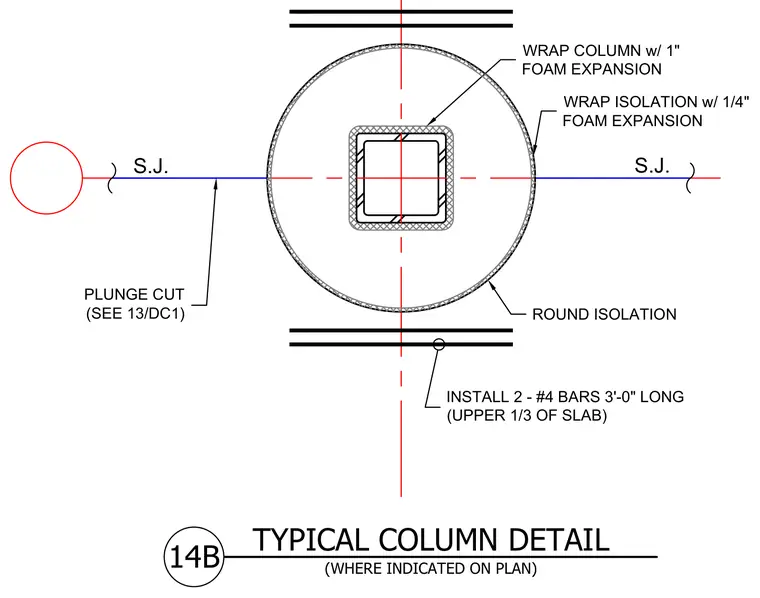

A square structural column is wrapped with one-inch foam expansion material and enclosed within a round isolation ring wrapped with quarter-inch foam expansion. Two number four reinforcing bars, three feet long, are installed in the upper third of the surrounding slab. A plunge cut is coordinated per sheet thirteen detail DC one.
S.J. S.J. WRAP COLUMN w/ 1" FOAM EXPANSION INSTALL 2 - #4 BARS 3'-0" LONG (UPPER 1/3 OF SLAB) TYPICAL COLUMN DETAIL 14B (WHERE INDICATED ON PLAN) PLUNGE CUT (SEE 13/DC1) ROUND ISOLATION WRAP ISOLATION w/ 1/4" FOAM EXPANSION
