Architectural · A-SR6PQ

Roof Assembly with Walking Pad and Insulation

Materials

Elements

Stairs Roofs Decks Waterproofing / Flashing Insulation

About this detail

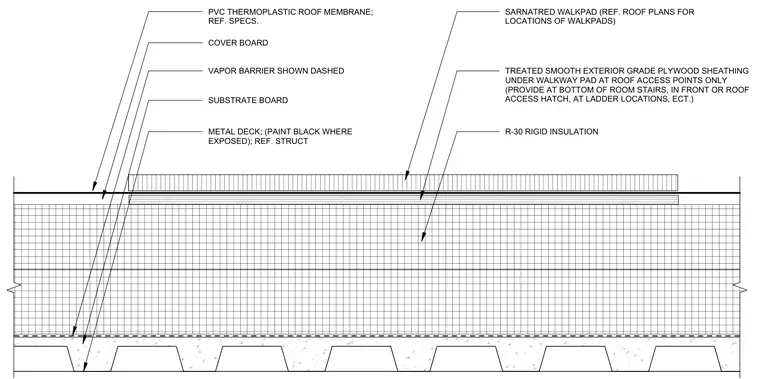

This roof section details a PVC thermoplastic roof membrane installed over a cover board and substrate board, supported by R-30 rigid insulation and a vapor barrier. A protective Sarnatred walkpad is laid over treated smooth exterior-grade plywood sheathing at designated roof access locations, stairs, hatches, and ladders. The entire roofing buildup rests on a structural metal deck, specified to be painted black where exposed.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
