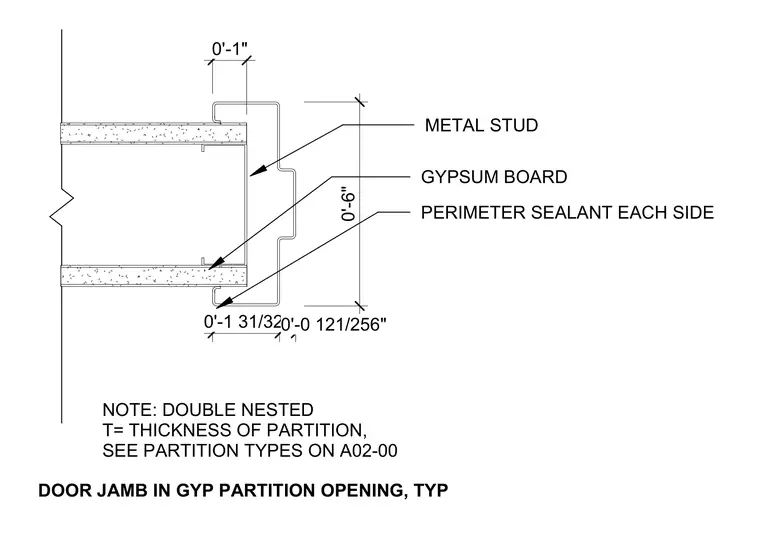

This plan detail shows a typical door jamb condition within a cold-formed metal stud partition finished with gypsum board on each side. The framing incorporates double-nested metal studs at the opening for enhanced structural support. Perimeter sealant is applied on each side of the frame joint to maintain acoustic and air-barrier continuity.
0'-6" 0'-1 31/32"0'-0 121/256" 0'-1" METAL STUD GYPSUM BOARD PERIMETER SEALANT EACH SIDE NOTE: DOUBLE NESTED T= THICKNESS OF PARTITION, SEE PARTITION TYPES ON A02-00 DOOR JAMB IN GYP PARTITION OPENING, TYP
