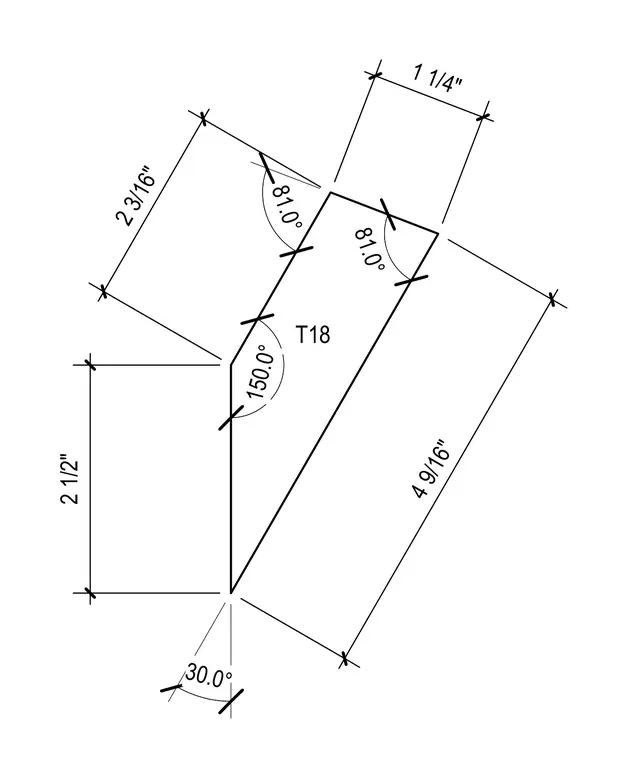

The T18 component features linear dimensions of two and three-sixteenths inches, one and one-quarter inches, two and one-half inches, and four and nine-sixteenths inches. Angular measurements define the geometry with two angles at eighty-one degrees, one at one hundred fifty degrees, and one at thirty degrees.
