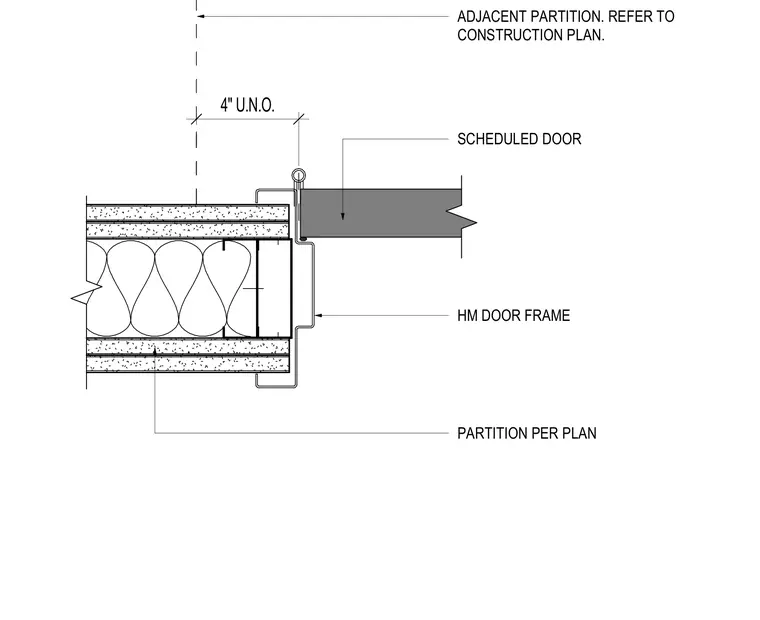

A hollow metal door frame connects to a scheduled partition assembly per plan, supporting a scheduled door leaf. Gypsum board layers finish both faces of the partition stud framing over batt insulation. An adjacent partition condition connects perpendicular to the frame assembly.
HM DOOR FRAME SCHEDULED DOOR PARTITION PER PLAN ADJACENT PARTITION. REFER TO CONSTRUCTION PLAN. 4" U.N.O.
