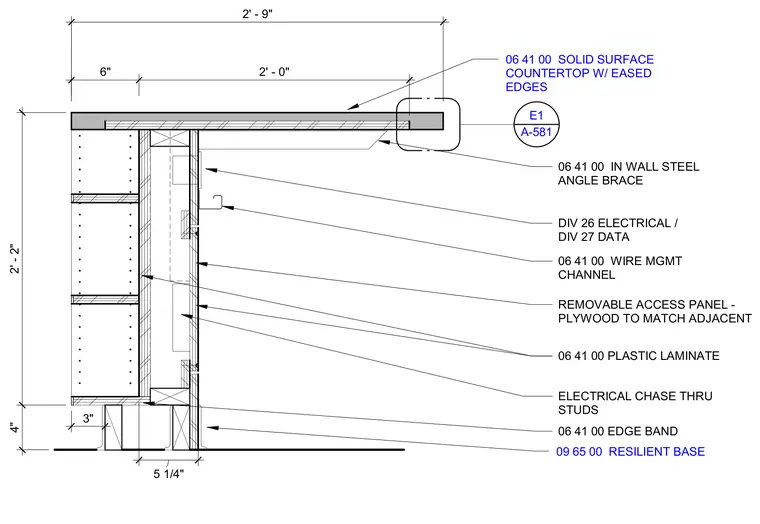

A solid surface countertop with eased edges bears on a wood-framed reception desk backed by an in-wall steel angle brace. The casework incorporates a plastic laminate finish with edge banding, a removable plywood access panel to match adjacent finishes, and a resilient base at the floor. Electrical and data routing includes an in-wall wire management channel and electrical chases through the studs.
06 41 00 WIRE MGMT CHANNEL 06 41 00 IN WALL STEEL ANGLE BRACE DIV 26 ELECTRICAL / DIV 27 DATA REMOVABLE ACCESS PANEL - PLYWOOD TO MATCH ADJACENT ELECTRICAL CHASE THRU STUDS 06 41 00 PLASTIC LAMINATE 06 41 00 EDGE BAND 4" 2' - 2" 2' - 9" 06 41 00 SOLID SURFACE COUNTERTOP W/ EASED EDGES 3" A-581 E1 09 65 00 RESILIENT BASE 5 1/4" 6" 2' - 0"
