A structural steel column is enclosed with two layers of half-inch gypsum board and an outer five-eighths-inch gypsum board layer installed per Gypsum Association publication GA CM 2450. A twenty-four manufacturer standard gauge galvanized steel column cover surrounds the gypsum board layers. Metal corner trim with one-and-a-half-inch legs finishes each corner of the column cover. The structural steel column size is specified on the structural drawings.

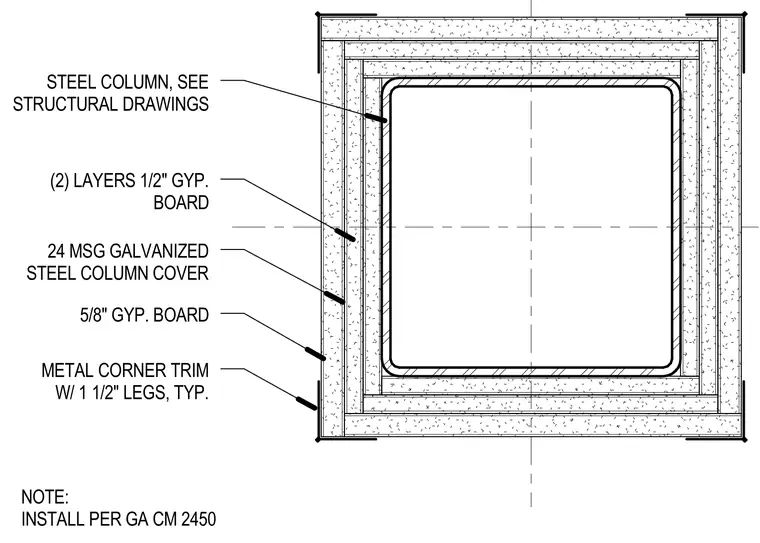

NOTE: INSTALL PER GA CM 2450 5/8" GYP. BOARD (2) LAYERS 1/2" GYP. BOARD STEEL COLUMN, SEE STRUCTURAL DRAWINGS 24 MSG GALVANIZED STEEL COLUMN COVER METAL CORNER TRIM W/ 1 1/2" LEGS, TYP.
