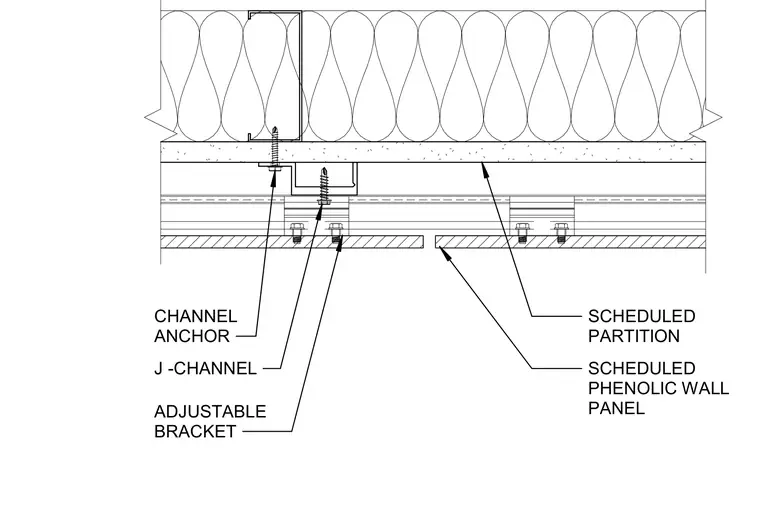

Scheduled phenolic wall panels attach to a scheduled partition using adjustable brackets and J-channels. A channel anchor secures the sub-framing assembly to the partition substrate. Fasteners connect the brackets and J-channel to the panel system.
SCHEDULED PARTITION SCHEDULED PHENOLIC WALL PANEL J -CHANNEL ADJUSTABLE BRACKET CHANNEL ANCHOR
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
