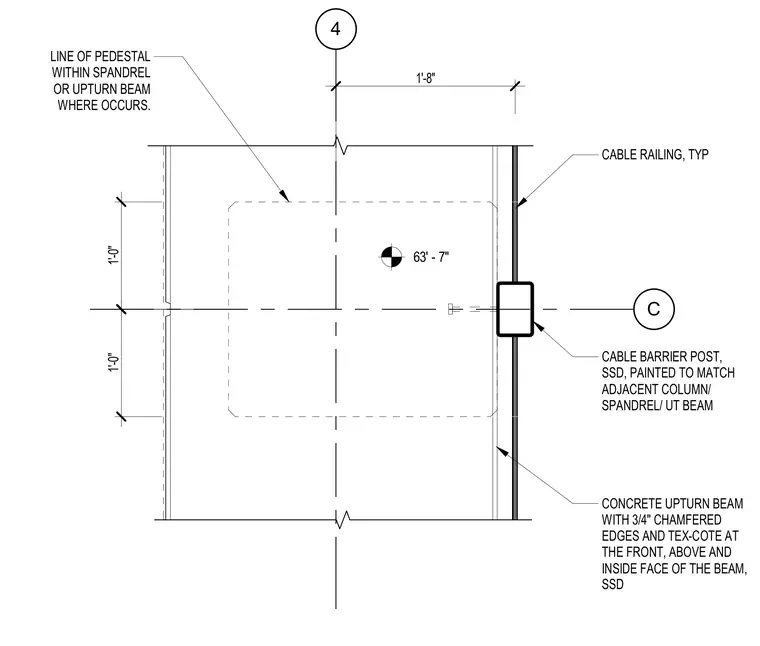

Cable Railing Post at Concrete Upturn Beam Plan Detail

Materials

Elements

About this detail

A cable barrier post is mounted to a concrete upturn beam featuring 3/4-inch chamfered edges and a protective Tex-Cote finish applied to the front, top, and inside faces. A structural steel detail pedestal is concealed within the spandrel or upturn beam where required by alignment. The cable railing assembly extends along the edge with typical spacing. The finish is painted to match the adjacent column, spandrel, and upturn beam.
