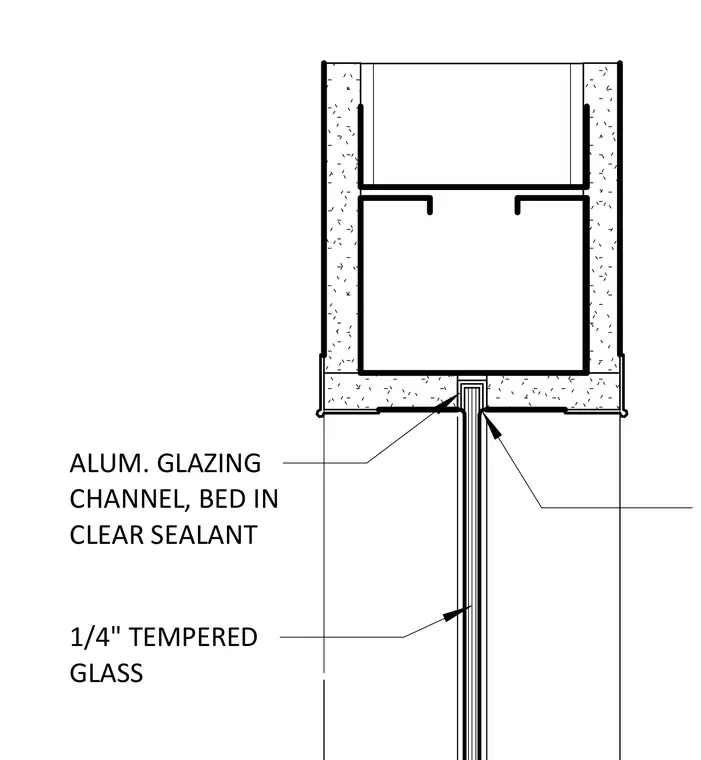

Quarter-inch tempered glass is secured within an aluminum glazing channel and bedded in clear sealant at the window head. The framing members are housed within a surrounding wall construction.
ALUM. GLAZING CHANNEL, BED IN CLEAR SEALANT 1/4" TEMPERED GLASS
