Architectural · A-SQJVA

Stair Guardrail Detail Adjacent to Storefront

Materials

Concrete Steel Masonry / CMU

Elements

Storefronts Stairs Railings / Guards Floors / Slabs Anchors / Embeds

Connections

Embed Plate

About this detail

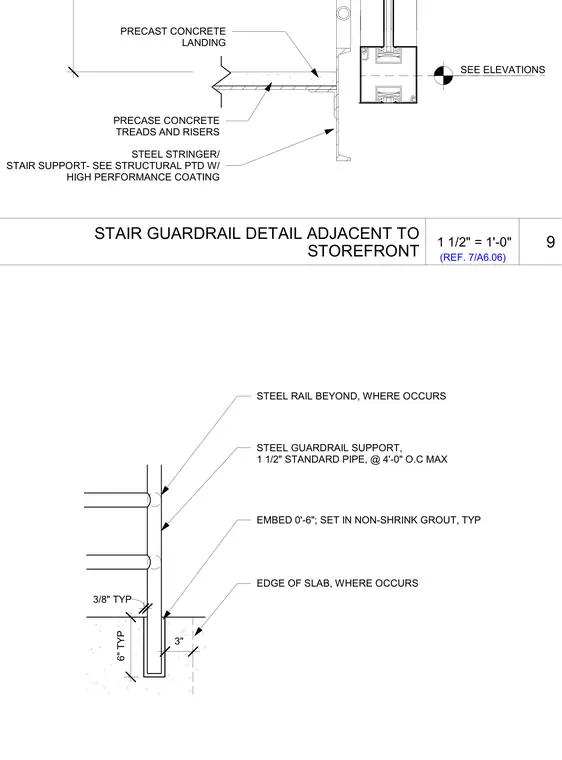

A stair guardrail assembly is positioned adjacent to a storefront system. The steel guardrail support consists of a one-and-a-half-inch standard pipe spaced at four feet on center maximum, embedded six inches deep into the concrete and set in non-shrink grout. Precast concrete treads and risers bear on a steel stringer stair support finished with a high-performance coating. Additional steel rail components extend beyond where applicable, adjacent to the edge of the slab and precast concrete landing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
