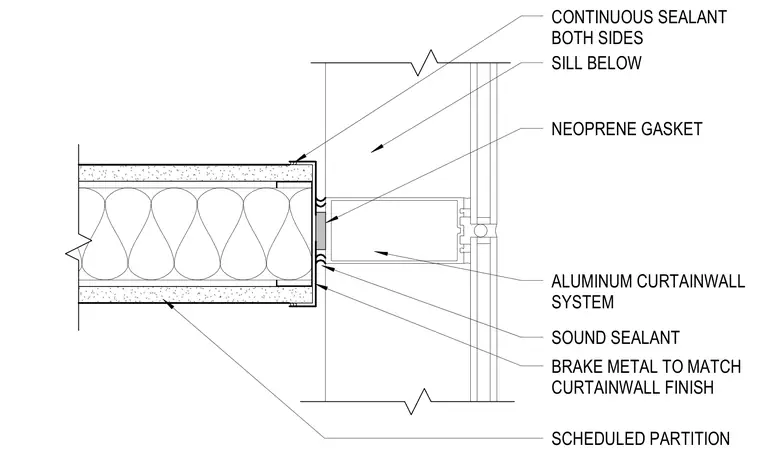

An interior scheduled partition terminates at an aluminum curtain wall system, finished with brake metal matching the curtain wall finish on both sides. A sill below the partition interfaces with the mullion via a neoprene gasket and continuous sealant applied on both sides. Sound sealant is provided at the partition and brake metal interface for acoustical separation.
SCHEDULED PARTITION SILL BELOW CONTINUOUS SEALANT BOTH SIDES BRAKE METAL TO MATCH CURTAINWALL FINISH ALUMINUM CURTAINWALL SYSTEM SOUND SEALANT NEOPRENE GASKET
