Architectural · A-SQBT2

Skylight Detail at Walkable Ceiling

Materials

Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Walls Skylights Roofs Ceilings Decks Waterproofing / Flashing Insulation Site / Paving

About this detail

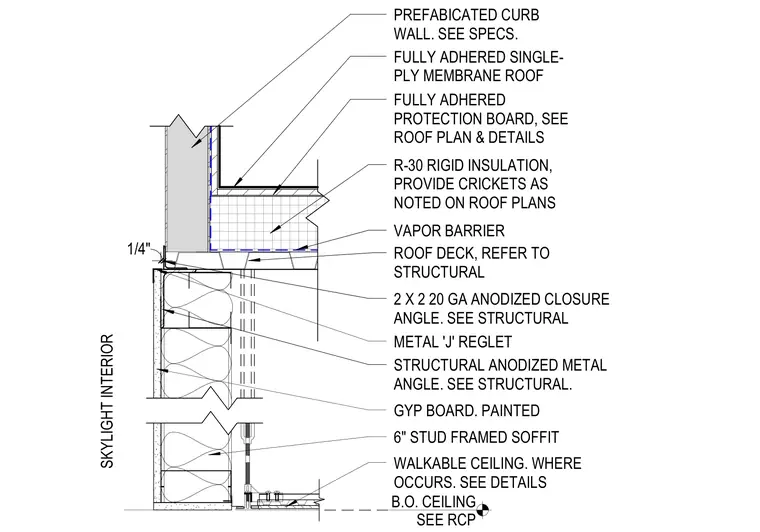

The roof assembly features a fully adhered single-ply membrane roof over a fully adhered protection board, R-30 rigid insulation with crickets, and a vapor barrier above the roof deck. A prefabricated curb wall ties into the roof edge above a structural anodized metal angle and a two-inch by two-inch twenty gauge anodized closure angle. Below the structural angle, a metal 'J' reglet transitions to the interior painted gypsum board finish. The lower assembly consists of a six-inch stud framed soffit intersecting a walkable ceiling where it occurs, located above the bottom of ceiling reference elevation.
