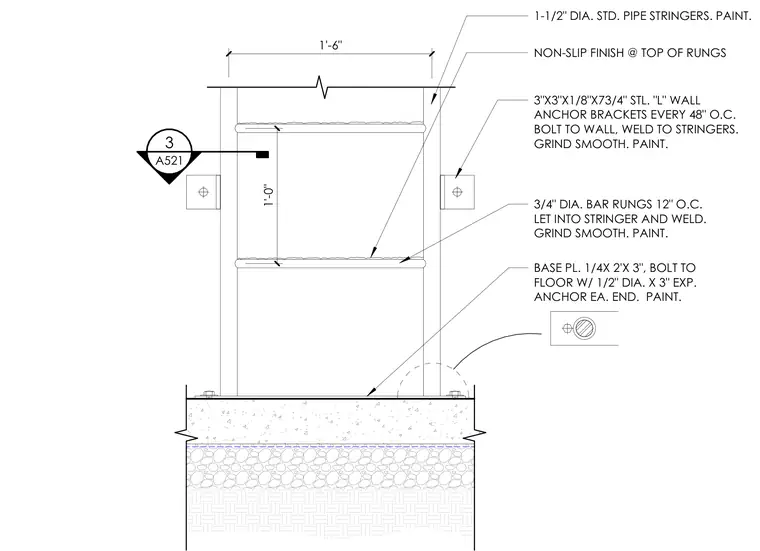

The assembly features one-and-a-half-inch diameter standard pipe stringers paired with three-quarter-inch diameter bar rungs spaced at twelve inches on center, let into the stringer and welded with the welds ground smooth and painted. A non-slip finish is applied at the top of the rungs. Three-inch by three-inch by one-eighth-inch by seven-and-three-quarter-inch steel angle wall anchor brackets are spaced at forty-eight inches on center, bolted to the wall and welded to the stringers. The base plate measuring one-quarter-inch by two inches by three inches is bolted to the floor with one-half-inch diameter by three-inch expansion anchors at each end.
1'-6" 1'-0" 1-1/2" DIA. STD. PIPE STRINGERS. PAINT. 3"X3"X1/8"X73/4" STL. "L" WALL ANCHOR BRACKETS EVERY 48" O.C. BOLT TO WALL, WELD TO STRINGERS. GRIND SMOOTH. PAINT. NON-SLIP FINISH @ TOP OF RUNGS 3/4" DIA. BAR RUNGS 12" O.C. LET INTO STRINGER AND WELD. GRIND SMOOTH. PAINT. BASE PL. 1/4X 2'X 3", BOLT TO FLOOR W/ 1/2" DIA. X 3" EXP. ANCHOR EA. END. PAINT. 3 A521
