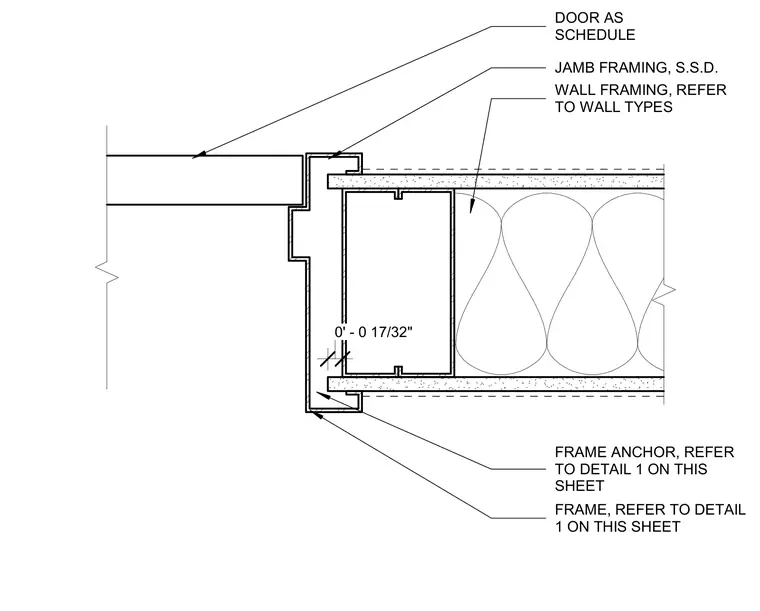

An interior hollow metal door frame connects to steel stud wall framing sized per structural drawings. The wall assembly consists of steel studs with thermal or acoustic batt insulation faced with gypsum board layers defined per wall types. A frame anchor secures the hollow metal jamb profile to the adjacent partition framing. The door leaf is sized per the door schedule.
DOOR AS SCHEDULE JAMB FRAMING, S.S.D. WALL FRAMING, REFER TO WALL TYPES FRAME ANCHOR, REFER TO DETAIL 1 ON THIS SHEET FRAME, REFER TO DETAIL 1 ON THIS SHEET 0' - 0 17/32"
