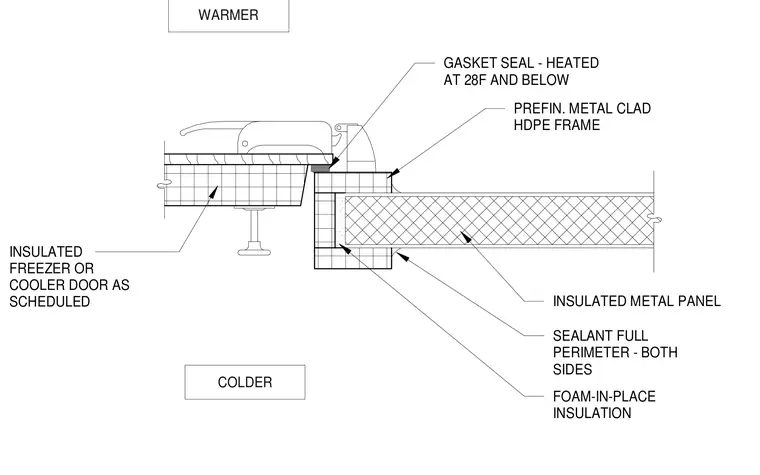

An insulated freezer or cooler door connects to a prefinished metal clad high-density polyethylene frame set into an insulated metal panel wall. The perimeter of the frame is sealed with foam-in-place insulation and a full perimeter sealant bead applied to both sides. A heated gasket seal operates at 28 degrees Fahrenheit and below along the contact surface between the door leaf and the frame. The wall assembly separates warmer and colder thermal zones.
INSULATED FREEZER OR COOLER DOOR AS SCHEDULED GASKET SEAL - HEATED AT 28F AND BELOW FOAM-IN-PLACE INSULATION PREFIN. METAL CLAD HDPE FRAME SEALANT FULL PERIMETER - BOTH SIDES INSULATED METAL PANEL WARMER COLDER
