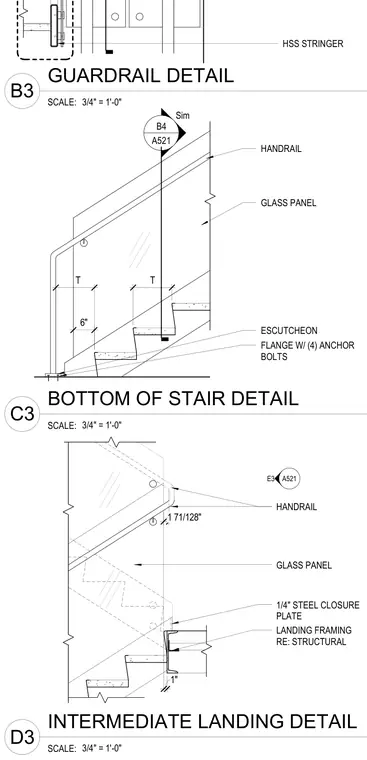

An intermediate stair landing assembly features a glass panel guardrail secured alongside a handrail and a one-quarter-inch steel closure plate. The steel closure plate connects directly to the landing framing sized per structural drawings. An escutcheon flange with four anchor bolts secures the assembly base.
HSS STRINGER GLASS PANEL T B4 A521 Sim HANDRAIL T 6" ESCUTCHEON FLANGE W/ (4) ANCHOR BOLTS 1 71/128" LANDING FRAMING RE: STRUCTURAL HANDRAIL A521 E3 A521 E3 1" 1/4" STEEL CLOSURE PLATE GLASS PANEL SCALE: 3/4" = 1'-0" B3 GUARDRAIL DETAIL SCALE: 3/4" = 1'-0" C3 BOTTOM OF STAIR DETAIL SCALE: 3/4" = 1'-0" D3 INTERMEDIATE LANDING DETAIL
