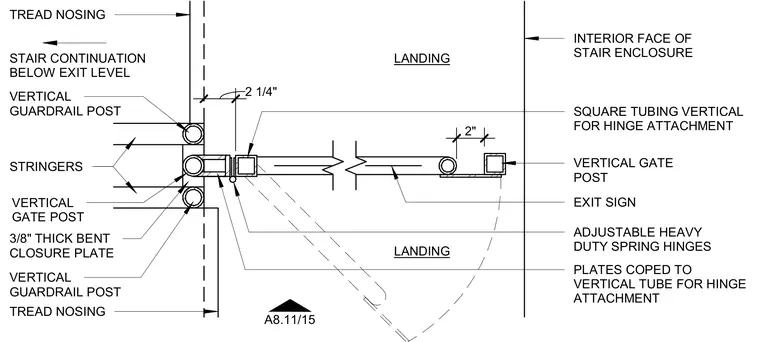

A stair barrier gate assembly occurs at a landing enclosure. Vertical guardrail posts connect adjacent to stair stringers alongside a three-eighths-inch thick bent closure plate. A square tubing vertical serves as the hinge attachment and is fitted with adjustable heavy-duty spring hinges. Additional attachment plates are coped to the vertical tube to facilitate hardware connection. A vertical gate post receives the swinging gate leaf, maintaining specific clearance dimensions relative to the interior face of the stair enclosure.
LANDING LANDING TREAD NOSING STAIR CONTINUATION BELOW EXIT LEVEL STRINGERS VERTICAL GATE POST 3/8" THICK BENT CLOSURE PLATE VERTICAL GUARDRAIL POST TREAD NOSING EXIT SIGN INTERIOR FACE OF STAIR ENCLOSURE VERTICAL GATE POST VERTICAL GUARDRAIL POST ADJUSTABLE HEAVY DUTY SPRING HINGES SQUARE TUBING VERTICAL FOR HINGE ATTACHMENT PLATES COPED TO VERTICAL TUBE FOR HINGE ATTACHMENT A8.11/15 2 1/4" 2"
