Six-inch cold-formed metal stud framing provides the structural backing, with stud spacing determined by structural drawings. Sound attenuation batt insulation fills the stud cavity. The exterior side receives half-inch gypsum sheathing finished with a seven-eighths-inch stucco finish. The interior side receives a finish specified in the finish schedule.

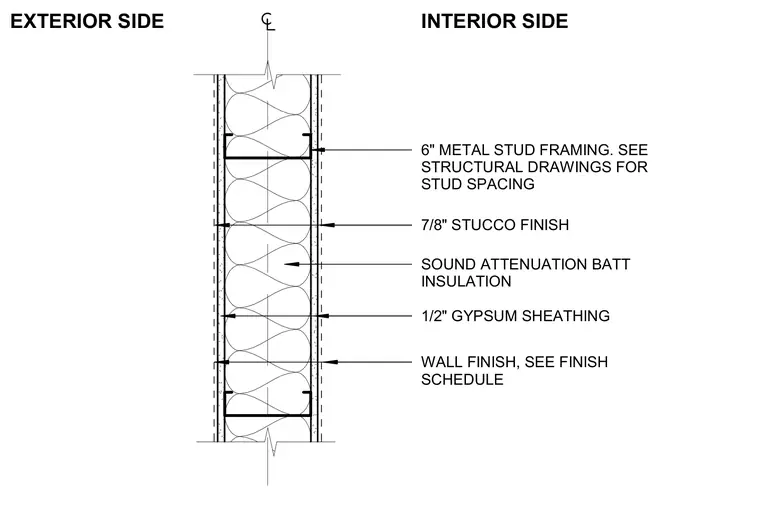

INTERIOR SIDE 6" METAL STUD FRAMING. SEE STRUCTURAL DRAWINGS FOR STUD SPACING SOUND ATTENUATION BATT INSULATION EXTERIOR SIDE 1/2" GYPSUM SHEATHING 7/8" STUCCO FINISH WALL FINISH, SEE FINISH SCHEDULE
