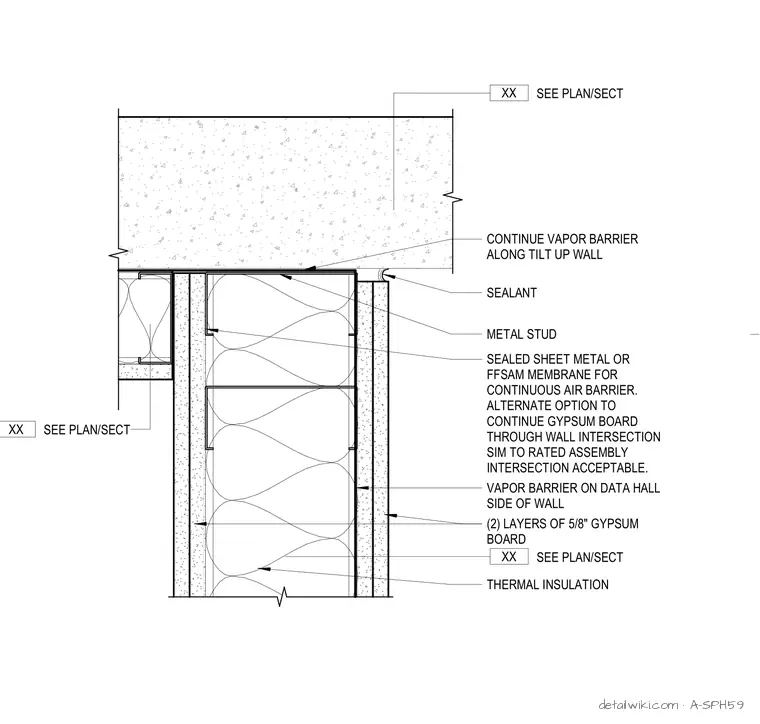

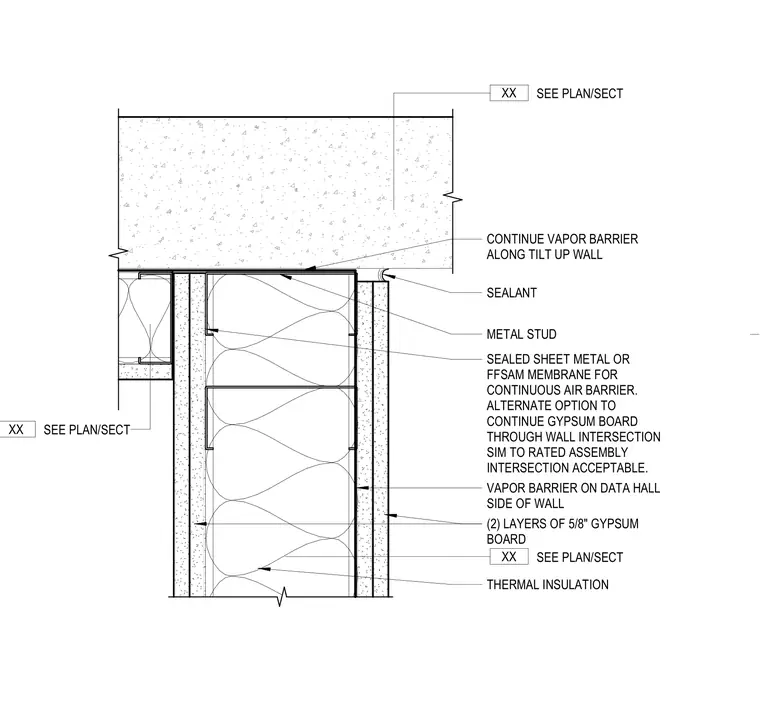

This partition wall intersection meets a tilt-up concrete wall with a continuous air barrier provided by sealed sheet metal or a flexible flashing and air membrane. The partition consists of metal studs with thermal insulation and two layers of 5/8-inch gypsum board on each side. A vapor barrier is applied to the data hall side of the wall and is continued along the face of the tilt-up concrete wall. Sealant is applied at the junction between the partition and the concrete. An alternate construction method allows the gypsum board to continue through the wall intersection, similar to a rated assembly intersection.
Text on the drawing
THERMAL INSULATION METAL STUD (2) LAYERS OF 5/8" GYPSUM BOARD SEALED SHEET METAL OR FFSAM MEMBRANE FOR CONTINUOUS AIR BARRIER. ALTERNATE OPTION TO CONTINUE GYPSUM BOARD THROUGH WALL INTERSECTION SIM TO RATED ASSEMBLY INTERSECTION ACCEPTABLE. VAPOR BARRIER ON DATA HALL SIDE OF WALL SEE PLAN/SECT SEE PLAN/SECT XX SEALANT SEE PLAN/SECT XX CONTINUE VAPOR BARRIER ALONG TILT UP WALL
