Architectural · A-SPF85

Handrail Extension at Landing

Materials

Concrete Steel Timber / Wood Metal (misc.)

Elements

Beams Walls Stairs Railings / Guards Floors / Slabs Decks Connections / Plates

Connections

Welded Connection

About this detail

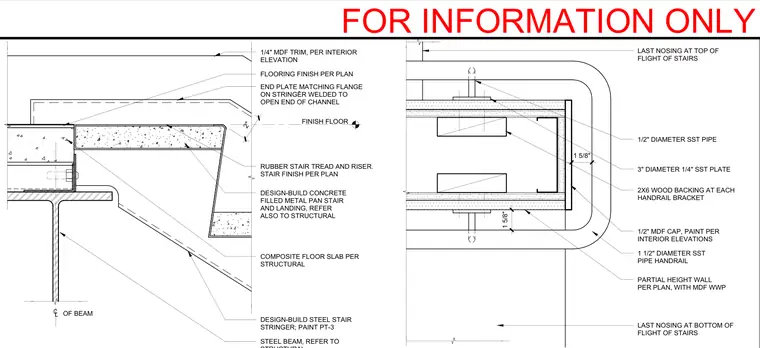

The assembly features a one and a half inch diameter stainless steel pipe handrail mounted with a half inch diameter stainless steel pipe bracket and three inch diameter by quarter inch thick stainless steel plate anchored into two by six wood backing at each handrail bracket. The partial height wall includes a half inch medium density fiberboard cap with finish paint per interior elevations and quarter inch medium density fiberboard trim. The steel stair stringer is a design-build member painted with PT-3, featuring an end plate matching the flange on the stringer welded to the open end of the channel. The stair construction consists of a two inch concrete filled metal pan stair and landing with rubber stair tread and riser, supported by a structural steel beam and composite floor slab per structural drawings.
