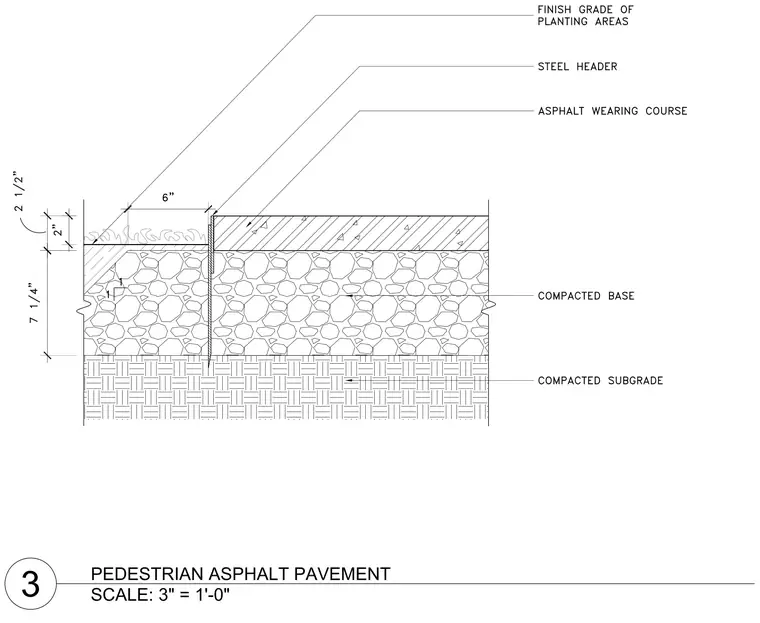

A pedestrian asphalt paving assembly meets a planted landscape area. An asphalt wearing course is placed over a compacted base and compacted subgrade, retained at the planting edge by a vertical steel header. The adjacent planting area features a finish grade set at a specified height relative to the pavement surface, with soil extending down to the compacted base. Dimensions indicate a 2-inch thickness for the wearing course, a 7-1/4-inch thickness for the compacted base, and specific vertical offsets for the planting grade.
