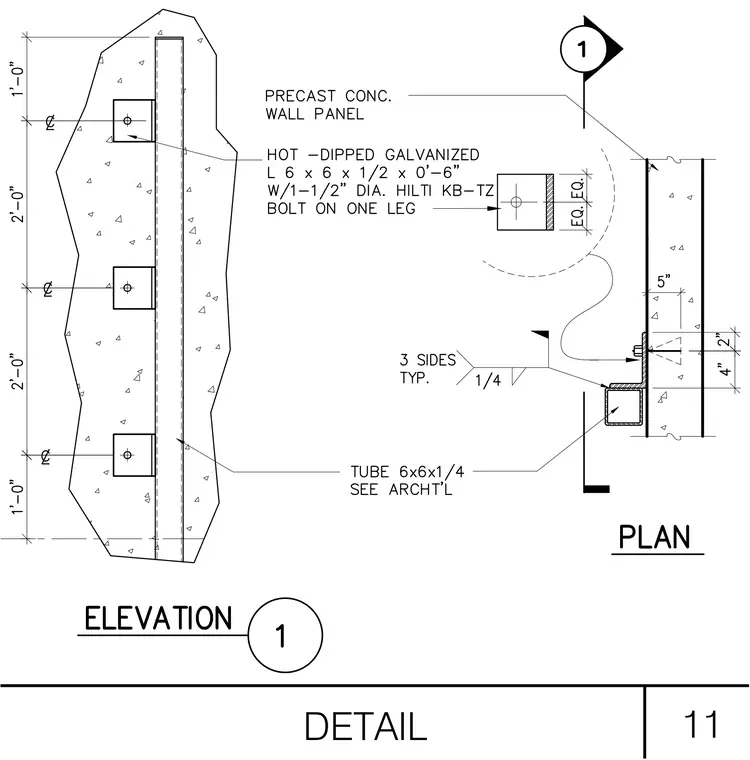

A precast concrete wall panel connects to a 6x6x1/4 hollow structural section tube, which is sized per architectural drawings. The connection utilizes a hot-dipped galvanized 6x6x1/2 angle measuring zero feet six inches in length, fastened to the precast concrete panel with a one-and-a-half-inch diameter Hilti KB-TZ bolt on one leg. The angle is welded to the tube using a quarter-inch fillet weld on three sides typically.
