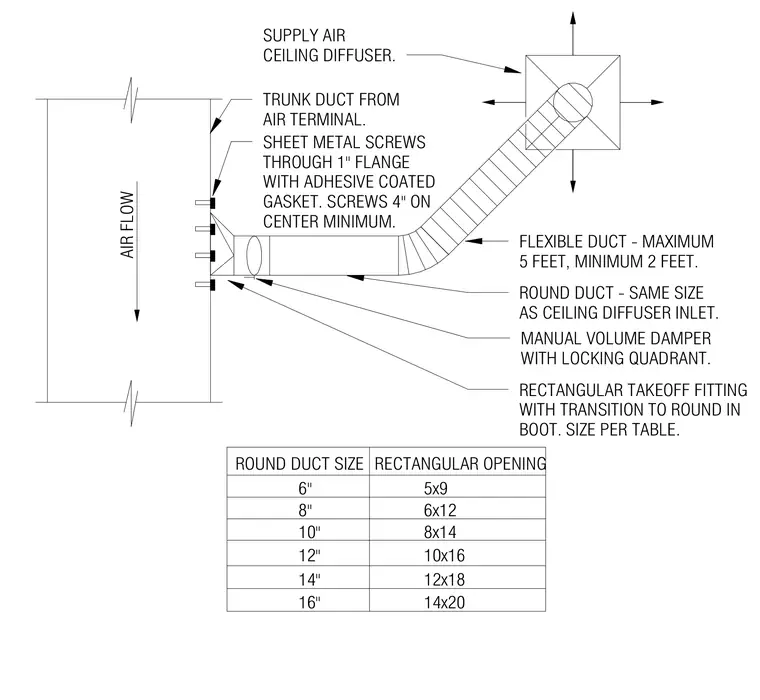

A rectangular takeoff fitting with a transition to a round connection mounts to the side of a main trunk duct and includes a manual volume damper with a locking quadrant. Sheet metal screws through a 1-inch flange with an adhesive-coated gasket secure the fitting at a maximum spacing of 4 inches on center. A round flexible duct matches the size of the ceiling diffuser inlet and spans between 2 feet and 5 feet in length to connect the branch to the supply air ceiling diffuser. Sizing for the round duct and rectangular opening follows the accompanying sizing table.
SUPPLY AIR CEILING DIFFUSER. TRUNK DUCT FROM AIR TERMINAL. SHEET METAL SCREWS THROUGH 1" FLANGE WITH ADHESIVE COATED GASKET. SCREWS 4" ON CENTER MINIMUM. AIR FLOW FLEXIBLE DUCT - MAXIMUM 5 FEET, MINIMUM 2 FEET. ROUND DUCT - SAME SIZE AS CEILING DIFFUSER INLET. MANUAL VOLUME DAMPER WITH LOCKING QUADRANT. RECTANGULAR TAKEOFF FITTING WITH TRANSITION TO ROUND IN BOOT. SIZE PER TABLE. ROUND DUCT SIZE RECTANGULAR OPENING 5x9 6x12 6" 8" 10" 12" 14" 16" 14x20 12x18 10x16 8x14
