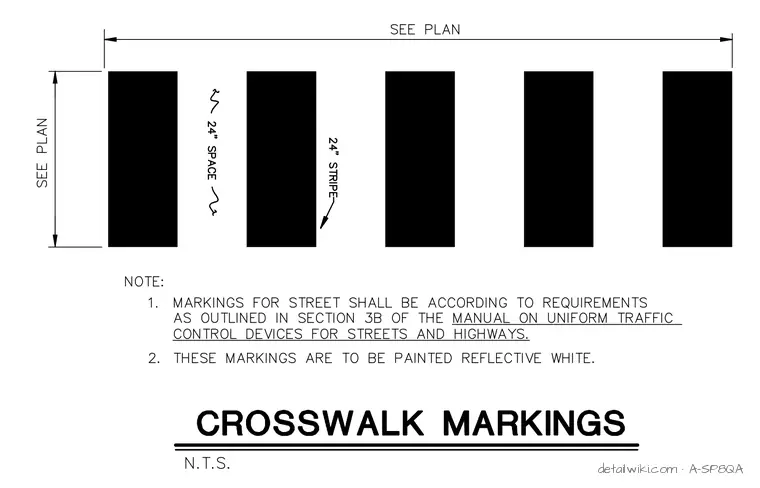

Standard crosswalk pavement markings feature twenty-four inch wide reflective white stripes spaced twenty-four inches apart, with overall dimensions sized per plan. Markings for the street must comply with the requirements outlined in Section 3B of the Manual on Uniform Traffic Control Devices for Streets and Highways. All markings are specified to be painted reflective white.
