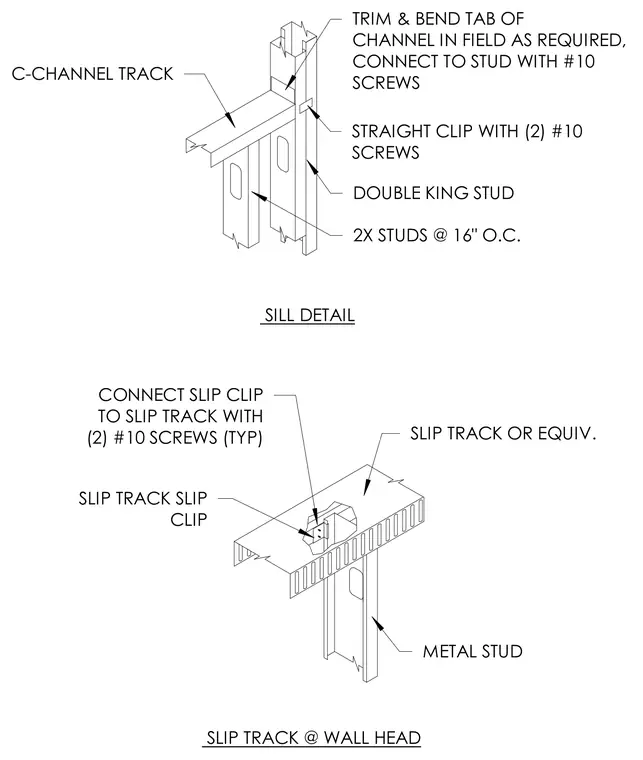

The wall head connection utilizes a slip track secured with a slip track slip clip fastened using two number ten screws. The sill assembly consists of a c-channel track trimmed and bent in the field to connect with two number ten screws to a double king stud and two by studs spaced at sixteen inches on center. A straight clip is attached to the double king stud with two number ten screws.
SLIP TRACK @ WALL HEAD SILL DETAIL CONNECT SLIP CLIP TO SLIP TRACK WITH (2) #10 SCREWS (TYP) SLIP TRACK SLIP CLIP METAL STUD SLIP TRACK OR EQUIV. 2X STUDS @ 16" O.C. DOUBLE KING STUD STRAIGHT CLIP WITH (2) #10 SCREWS TRIM & BEND TAB OF CHANNEL IN FIELD AS REQUIRED, CONNECT TO STUD WITH #10 SCREWS C-CHANNEL TRACK
